DolphinDB 流计算在商品期货交易的应用：持仓信息指标定制化设计与扩展

OnRspQryInvestorPosition 接口流表创建【原持仓明细表】：

colNames = [
    "BrokerID","InvestorID","PosiDirection","HedgeFlag","PositionDate",
    "YdPosition","Position","LongFrozen","ShortFrozen","LongFrozenAmount","ShortFrozenAmount",
    "OpenVolume","CloseVolume","OpenAmount","CloseAmount","PositionCost","PreMargin","UseMargin",
    "FrozenMargin","FrozenCash","FrozenCommission","CashIn","Commission","CloseProfit","PositionProfit",
    "PreSettlementPrice","SettlementPrice","TradingDay","SettlementID","OpenCost","ExchangeMargin",
    "CombPosition","CombLongFrozen","CombShortFrozen","CloseProfitByDate","CloseProfitByTrade",
    "TodayPosition","MarginRateByMoney","MarginRateByVolume","StrikeFrozen","StrikeFrozenAmount",
    "AbandonFrozen","ExchangeID","YdStrikeFrozen","InvestUnitID","PositionCostOffset",
    "TasPosition","TasPositionCost","InstrumentID","ReceivedTime"
]
colTypes = [
    STRING,STRING,STRING,STRING,STRING,INT,INT,INT,INT,DOUBLE,DOUBLE,INT,INT,DOUBLE,
    DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,
    DOUBLE,DOUBLE,DATE,INT,DOUBLE,DOUBLE,INT,INT,INT,DOUBLE,DOUBLE,INT,DOUBLE,DOUBLE,
    INT,DOUBLE,INT,STRING,INT,STRING,DOUBLE,INT,DOUBLE,STRING,NANOTIMESTAMP
]
enableTableShareAndPersistence(table=streamTable(10000:0, colNames, colTypes), tableName=`InvestorPositionTable, cacheSize=1200000)

OnRtnTrade 接口流表创建：

colNames = [
    "BrokerID", "InvestorID", "OrderRef", "UserID", "ExchangeID",
    "TradeID", "Direction", "OrderSysID", "ParticipantID", "ClientID",
    "TradingRole", "OffsetFlag", "HedgeFlag", "Price", "Volume",
    "TradeDate", "TradeTime", "TradeType", "PriceSource", "TraderID",
    "OrderLocalID", "ClearingPartID", "BusinessUnit", "SequenceNo", "TradingDay",
    "SettlementID", "BrokerOrderSeq", "TradeSource", "InvestUnitID", "InstrumentID",
    "ExchangeInstID"
]
colTypes = [
STRING, STRING, STRING, STRING, STRING,
STRING, STRING, STRING, STRING, STRING,
STRING, STRING, STRING, DOUBLE, INT,
DATE, TIME, STRING, STRING, STRING,
STRING, STRING, STRING, INT, DATE,
INT, INT, STRING, STRING, STRING,
STRING
]
enableTableShareAndPersistence( streamTable(10000:0, colNames, colTypes), `OnTradeStreamTable, 1200000)

开平仓信息表创建：

if(existsDatabase("dfs://onStreamTable")){
    dropDatabase("dfs://onStreamTable")
}
colNames = [
        "ExchangeID","Direction","OffsetFlag","Price","Volume","TradingDay","TradeDate","TradeTime","InstrumentID",
        "ReTradeID","TradeID","Position","ClosedPosition","OpenPrice","OpenDate","PreClosePrice"
 ]
colTypes = [
        STRING,STRING,STRING,DOUBLE,INT,DATE,DATE,TIME,STRING,STRING,STRING,INT,INT[],DOUBLE[],DATE[],DOUBLE
]
dt = createDimensionTable(dbHandle=db, table=table(1:0,colNames, colTypes),
    tableName=`OpenPositionMessage ,sortColumns=`TradeDate`TradeTime)

加工之后的持仓明细表：

colNames = [
    "ReceivedTime","PosiDirection","InstrumentID","Commission","CloseProfit",
    "PositionCost","OpenCost","VolumeMultiple",
    "PreSettlementPrice","SpotPrice","Position","FloatingProfitByTrade","FloatingProfitByDate",
    "CloseProfitByDate","CloseProfitByTrade","Direction","IV","Delta_手","Delta",
    "Gamma_手","Gamma","Vega","Theta"
]
colTypes = [
    NANOTIMESTAMP,SYMBOL,STRING,DOUBLE,DOUBLE,
    DOUBLE,DOUBLE,DOUBLE,
    DOUBLE,DOUBLE,INT,DOUBLE,DOUBLE,
    DOUBLE,DOUBLE,STRING,DOUBLE,DOUBLE,DOUBLE,
    DOUBLE,DOUBLE,DOUBLE,DOUBLE
]
share keyedTable(`PosiDirection`InstrumentID,10:0,colNames,colTypes) as `GreekTable

CTP 行情数据接入：

DolphinDB CTP 行情插件最佳实践指南。

CTP 交易数据接入：

通用插件还在开发之中，目前只有一个针对融航数据分发的程序包来对接数据。

CTP 官方接口文档：

完整 CTP 接口规范请查阅上海期货信息技术有限公司官网。

报单信息可分为两类：开仓信息和平仓信息，在期货与期权交易中，开仓信息决定交易的起点，平仓信息确定交易的终点，两者共同决定最终盈亏并形成完整的交易闭环。类比到商品交易中，开仓信息类似于以特定价格和数量采购商品的行为，决定了交易的初始成本；而平仓信息则类似于以某个价格出售商品的行为，确定交易的最终收益或亏损。因此，完成一次完整的交易最关键的步骤是平仓，且平仓必须与开仓信息精确匹配，即平仓操作需与开仓的方向、数量及合约类型一致。只有确保开平仓信息的一致性，才能准确实现盈亏结算，确保交易的完整性和风险的有效管控。

为了确保开仓与平仓操作的一致性和精确性，进而准确计算盈亏并有效管理风险，合成一张开平仓信息对应表显得尤为必要。这张表能够直观地展示每一笔交易的开仓与平仓数据，包括方向、数量、价格等关键信息，帮助交易者实时监控和管理头寸，从而在复杂的交易环境中保持策略的执行力与风险可控性。

利用 DolphinDB 的流计算和自定义函数可以很方便的实现开平仓信息表的合成。

前提：

• TradeID (成交编号) 在同一交易日内具有唯一性，并且按照生成顺序递增，不会发生重复。
• TradeDate 和 TradingDay 已按照标准模式处理，即每天21:00:00-24:00:00的夜盘信息的 TradingDay 为 TradeDate 的下一个交易日。
• 平仓信息按照 TradeID 和 TradeTime 的先后顺序进行匹配，必须在完成前一个开仓信息的平仓后，才能依次对下一个开仓信息进行平仓。

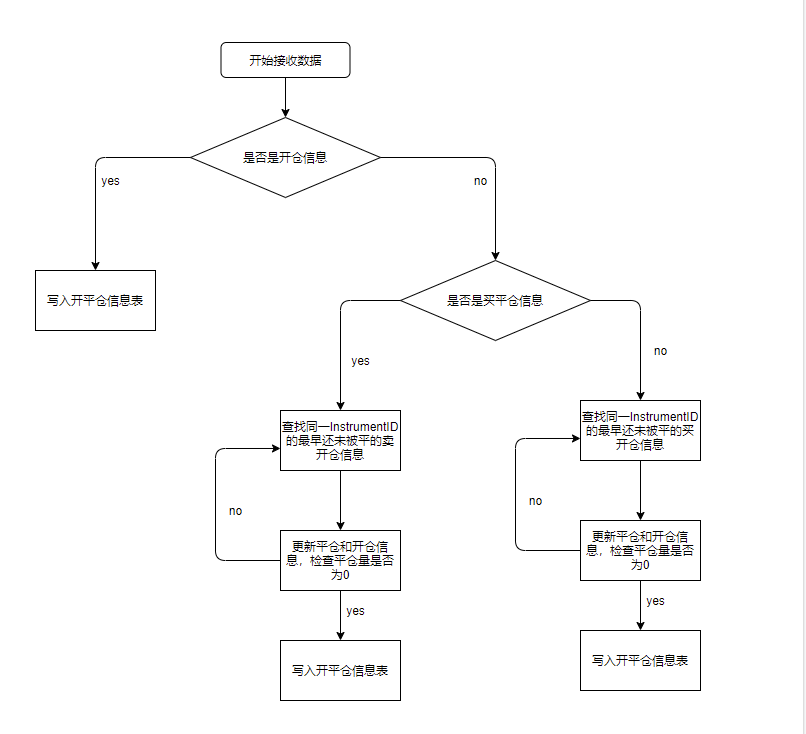

合成步骤：

• 实时接收报单信息，将数据存放在流表之中，订阅该流表并传入自定义回调函数来处理信息。
• 当每来一条或者一批数据，将其按照开仓和平仓分成两部分，开仓信息直接存入开平仓信息表，平仓信息先放在内存中。
• 按 InstrumentID 遍历所有平仓记录，在开平仓信息表中查找相同 InstrumentID 且剩余持仓量大于零的开仓记录并进行抵扣，直到该平仓记录的持仓量归零。 抵扣时需记录平仓与开仓记录的对应关系、实际抵扣数量、对应开仓价和开仓日期。
• 最后根据上诉信息更新开平仓信息表里面对应的开仓信息以及内存中的平仓信息，更新后的平仓信息也存入开平仓信息表中，开平仓信息表更新完成。

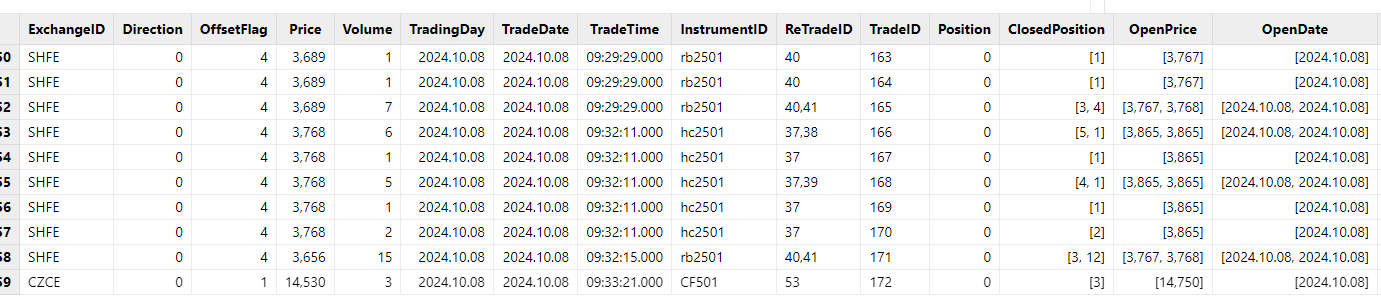

开平仓信息表的表结构：

从 CTP 行情数据表里面获取数据

/**
 * ==================== 从 CTP 行情数据表里面获取数据 =========================
 */
def getInfoFromCtp(instrumentID_, posReceiveTime, cpMode){
    /*
    * instrumentID_：标的代码
    * posReceiveTime：数据接收时间
    * cpMode：0表示期货,1和-1表示看涨看跌期权
    */
    /*
    * 获取ExpireDate【到期日】,VolumeMultiple【合约乘数】,PreSettlementPrice【昨日结算价】,optionPrice【期权价】,futurePrice【期货价】,KPrice【执行价】
    */
    if(cpMode == 0){
        // 从ctpInfo 表里面 获取 ,VolumeMultiple  字段:
        option_info =
            select top 1 ExpireDate,VolumeMultiple
            from loadTable("dfs://option_info","data")
            where InstrumentID = instrumentID_ and insertTime <= posReceiveTime
            context by InstrumentID csort insertTime desc

        // ExpireDate:
        expireDate = option_info.ExpireDate[0]

        // 合约乘数
        volumeMultiple = option_info.VolumeMultiple[0]

        // 期货价格
        futurePrice =
            exec top 1 LastPrice
            from ctp_market_data1
            where InstrumentID = instrumentID_ and ReceivedTime <= posReceiveTime
            context by InstrumentID csort TradingDay desc,UpdateTime desc ,UpdateMillisec desc

        if(futurePrice[0].isNull()){
            futurePrice =
                exec LastPrice from (
                select *
                from loadTable("dfs://ctp_market_data","ctp_market_data")
                where InstrumentID = instrumentID_ and ReceivedTime <= posReceiveTime
                context by InstrumentID limit -1 )
        }
        //昨日收盘价
        preSettlementPrice =
            (exec PreClosePrice.nullFill(0) from (
            select *
            from loadTable("dfs://ctp_market_data","ctp_market_data")
            where InstrumentID = instrumentID_ and ReceivedTime <= posReceiveTime
            context by InstrumentID limit -1 ))[0]

        optionPrice = 0
        kPrice = 0
    }else{
        instrumentID_underlying = instrumentID_.regexReplace("-?(C|P|c|p)-?[0-9]+$","");

        // 从ctpInfo 表里面 获取 ,VolumeMultiple  字段:
        option_info =
            select top 1 ExpireDate,VolumeMultiple
            from loadTable("dfs://option_info","data")
            where InstrumentID = instrumentID_ and insertTime <= posReceiveTime
            context by InstrumentID csort insertTime desc

        // ExpireDate:
        expireDate = option_info.ExpireDate[0]
        // 合约乘数
        volumeMultiple = option_info.VolumeMultiple[0]

        // 昨日收盘价 -- 期权合约,用昨日最后一笔的（bid + ask ）/2来计算逐日盈亏
        preSettlementPrice =
                (exec  ((AskPrice1 + BidPrice1)\2).nullFill(0)
                from  loadTable("dfs://ctp_market_data","ctp_market_data")
                where InstrumentID = instrumentID_ and TradingDay = date(temporalAdd(date(ReceivedTime),-1,"CZCE")) and time(ReceivedTime)<= 15:00:00
                context by InstrumentID limit -1)[0]


        // 期权价格
        optionPrice =
            exec top 1  ((BidPrice1+AskPrice1)\2).nullFill(0)
            from ctp_market_data1
            where InstrumentID = instrumentID_ and ReceivedTime <= posReceiveTime
            context by InstrumentID csort ReceivedTime desc

        if(optionPrice[0].isNull()){
           optionPrice =
                exec  (BidPrice1+AskPrice1)\2 from (
                select  *
                from loadTable("dfs://ctp_market_data","ctp_market_data")
                where InstrumentID = instrumentID_ and ReceivedTime <= posReceiveTime context by InstrumentID limit -1)
        }


        // 期货价格
        futurePrice =
            exec top 1 LastPrice
            from ctp_market_data1
            where InstrumentID = instrumentID_underlying and ReceivedTime <= posReceiveTime
            context by InstrumentID csort TradingDay desc,UpdateTime desc ,UpdateMillisec desc

        if(futurePrice[0].isNull()){
            futurePrice =
                exec LastPrice from (
                select *
                from loadTable("dfs://ctp_market_data","ctp_market_data")
                where InstrumentID = instrumentID_underlying and ReceivedTime <= posReceiveTime
                context by InstrumentID limit -1 )
        }

        kPrice = instrumentID_.regexReplace("^.{3,}(C|P|c|p)-?","").cast(INT)
    }
    return expireDate, volumeMultiple, preSettlementPrice, optionPrice, futurePrice, kPrice
}

从持仓信息表里面获取数据，并合并上期所的今仓与昨仓

/**
 * ==================== 从持仓信息表获取数据 =========================
 */
def getInfoFromInvestorPositionTable(instrumentID_, posReceiveTime, posiDirection_){
    /*
    * instrumentID_：标的代码
    * 插入时间
    * 持仓多空方向
    */
    msg =
    select
        Commission,TradingDay, CloseProfit, PositionProfit,
        PositionCost as PositionCost,
        OpenCost as OpenCost,PreSettlementPrice,CloseProfitByDate,CloseProfitByTrade,
        Position,PosiDirection,InstrumentID,YdPosition,TodayPosition,
        // '1'=净仓, '2'=多仓, '3'=空仓
        case
            when PosiDirection = '1' then '净仓'
            when PosiDirection = '2' then '多仓'
            when PosiDirection ='3' then '空仓'
        end as Direction,OpenAmount
    from InvestorPositionTable
    where InstrumentID = instrumentID_ and ReceivedTime = posReceiveTime  and PosiDirection = posiDirection_


    result =
    select
        sum(Commission) as Commission,last(TradingDay) as TradingDay, sum(CloseProfit) as CloseProfit,
        sum(PositionProfit) as PositionProfit,
        sum(PositionCost)\sum(Position)\VolumeMultiple  as PositionCost,
        sum(OpenCost)\sum(Position)\VolumeMultiple  as OpenCost,
        last(PreSettlementPrice) as PreSettlementPrice,sum(CloseProfitByDate) as CloseProfitByDate,
        sum(CloseProfitByTrade) as CloseProfitByTrade,sum(Position) as Position,
        last(Direction) as Direction,sum(OpenAmount) as OpenAmount,sum(YdPosition) as YdPosition,
        sum(TodayPosition) as TodayPosition
    from msg
    group by InstrumentID,PosiDirection

    return result
}

在期货与期权交易中，开仓盈亏与平仓盈亏是评估交易效果和管理风险的重要指标，贯穿于整个交易流程。开仓盈亏反映的是持仓期间的浮动盈亏，帮助交易者实时掌握头寸的风险和潜在收益，便于及时调整策略或管理仓位；而平仓盈亏则体现了交易结束时的实际盈亏结果，直接影响账户资金变化，是衡量交易策略成败与优化的重要依据。在实际生产中，这两个指标不仅是交易策略执行的核心参考，还在风险控制、资金管理、绩效评估等方面发挥着至关重要的作用。

计算逐笔持仓盈亏

• 买卖方向 * 合约乘数 * 持仓量 * （期权价 - 开仓成本）

/**
 * ==================== 计算逐笔持仓盈亏 =========================
 */
 def calFloatingProfitByTrade(posiDirection, volumeMultiple, position, futurePrice, openCost){
    /*
    * posiDirection:持仓多空方向
    * volumeMultiple:合约乘数
    * position:今日持仓
    * futurePrice:期权价
    * openCost:开仓成本
    */
    floatingProfitByTrade =
        iif(posiDirection == '2',1,-1) * volumeMultiple * position * (futurePrice - openCost)
    return floatingProfitByTrade
}

计算逐日持仓盈亏

• 当日开新持仓，没有历史持仓：买卖方向 * 合约乘数 * 持仓量 * （期权价 - 开仓成本）
• 有历史持仓的前提下，当日没有开新仓 ：买卖方向 * 合约乘数 * 持仓量 * （期权价 - 昨结算价）
• 有历史持仓的前提下，当日有开新仓： (买卖方向 * 合约乘数 * 持仓量 * （持仓量 - 今日持仓）*（期权价 - 昨结算价)) + (买卖方向 * 合约乘数 * 持仓量 * 今日持仓*（期权价 - 开仓价))

/**
 * ==================== 计算逐日持仓盈亏 =========================
 */
 def calFloatingProfitByDate(symbol, ydPosition, todayPosition, posiDirection, volumeMultiple, position, optionPrice, openCost, preSettlementPrice){
    /*
    * symbol: 期权合约
    * ydPosition:昨仓
    * todayPosition:今仓
    * posiDirection:持仓多空方向
    * volumeMultiple:合约乘数
    * position:今日持仓
    * optionPrice:期权价
    * openCost:开仓成本
    * preSettlementPrice：昨结算价
    */
    if(ydPosition == 0){
    //1）：当日开新持仓,没有历史持仓：买卖方向 * 合约乘数 * 持仓量 * （期权价 - 开仓成本）
        floatingProfitByDate =
            iif(posiDirection == '2',1,-1) * volumeMultiple * position * (optionPrice - openCost)
      }else{
             if(todayPosition == 0){
            //2）：有历史持仓的前提下,当日没有开新仓 ：买卖方向 * 合约乘数 * 持仓量 * （期权价 - 昨结算价）
                 floatingProfitByDate =
                    iif(posiDirection == '2',1,-1) * volumeMultiple * position *  (optionPrice - preSettlementPrice)
             }else{
            //3）：有历史持仓的前提下,当日有开新仓： (买卖方向 * 合约乘数 * 持仓量 * （持仓量 - 今日持仓）*（期权价 - 昨结算价))
            // + (买卖方向 * 合约乘数 * 持仓量 * 今日持仓*（期权价 - 开仓价))
                toDayFloatProfit =
                    exec (iif(Direction == '0',1,-1) * volumeMultiple * Position * (optionPrice-price)).sum() as toDayFloatProfit
                    from OpenPositionMessage
                    where InstrumentID = symbol and OffsetFlag = '0'  and TradingDay = date(now()) and Position > 0

                floatingProfitByDate =
                    (iif(posiDirection == '2',1,-1) * volumeMultiple *(position - todayPosition) * (optionPrice-preSettlementPrice))  + toDayFloatProfit.nullFill(0)
             }
     }
     return floatingProfitByDate
}

计算逐日、逐笔平仓盈亏：

• 逐日
  • 平昨日仓：（成交价-昨收价） * 买卖方向 * 平仓量 * 合约乘数
  • 平今日仓：（成交价-开仓价） * 买卖方向 * 平仓量 * 合约乘数
• 逐笔
  • （成交价-开仓价） * 买卖方向 * 平仓量 * 合约乘数

/**
 * ==================== 计算逐笔平仓盈亏 =========================
 */
 def calCloseingProfitByTrade(symbol, posiDirection, volumeMultiple){
    /*
    * symbol: 期权合约
    * posiDirection:持仓多空方向
    * volumeMultiple:合约乘数
    */
    CloseMsg =
        select
            //1）：逐日：平的不是今天的开仓：（成交价-昨收价） * 买卖方向 * 平仓量 * 合约乘数
            ((OpenDate!=date(now())).cast(INT[])*(Price - PreClosePrice)* iif(posiDirection == '2',1,-1) * ClosedPosition * volumeMultiple) as CloseingProfitByDate1,
            //2）：逐日：平的是今天的开仓：（成交价-开仓价） * 买卖方向 * 平仓量 * 合约乘数
            ((OpenDate=date(now())).cast(INT[])*(Price - OpenPrice)* iif(posiDirection_ == '2',1,-1) * ClosedPosition * volumeMultiple) as CloseingProfitByDate2,
            //3）：逐笔计算：（成交价-开仓价） * 买卖方向 * 平仓量 * 合约乘数
            (((Price - OpenPrice) * iif(posiDirection == '2',1,-1) * ClosedPosition * volumeMultiple)) as CloseingProfitByTrade
        from (
                select * from OpenPositionMessage  where InstrumentID= symbol and OffsetFlag != '0'  and Direction = iif(posiDirection =='2','1','0')
        )

    closeingProfitByDateSum = (exec CloseingProfitByDate1 + CloseingProfitByDate2 from CloseMsg).flatten().sum().nullFill(0)
    closeingProfitByTradeSum= (exec CloseingProfitByTrade from CloseMsg).flatten().sum().nullFill(0)

    return closeingProfitByDateSum, closeingProfitByTradeSum
}

在期权交易中，​隐含波动率（IV）​与希腊字母（Greeks）​是衡量风险与收益的核心工具。隐含波动率通过期权价格反推市场对未来波动的预期，既是定价的“隐形引擎”，也是判断市场高估或低估的信号灯——高 IV 预示风险溢价，低 IV 则暗藏机会。而希腊字母则精准刻画了期权价格对市场变量的敏感度：Delta管理方向风险，Gamma捕捉价格曲率变化，Theta量化时间衰减效应，Vega控制波动敞口。两者结合，不仅为策略提供动态对冲依据，更能优化组合在收益、风险与成本间的平衡，成为驾驭复杂市场的关键坐标。

/**
 * ==================== BSM模型和牛顿法,计算隐含波动率=========================
 */
def pdfNorm(x,mean=0,var=1){
	return exp(-pow((x - mean) , 2) \ (2 * pow(var , 2)) ) \ sqrt(2 * pi) * var
}
def bs_price(options_type, spot, strike, maturity, r, vol, q=0.0){ // vol = sigma
	/*
	 * options_type:期权类型 ,1或-1,代表C' or 'P'
	 * spot：现货价,float:
	 * strike：行权价,float
	 * maturity：剩余天数,float、int
	 * r：无风险利率,float
	 * vol：波动率,float
	*/
	 if (options_type in [1, -1]){
	 	phi = options_type
	 }else{
	 	print("The Options Type is Wrong!")
	 	return
	 }
	if (vol == 0 or maturity == 0){
		return max(0.0, phi * (spot - strike))

	}
	if (strike == 0){
		print('The strike_price price cannot be zero')
	}
	d1 = (log(spot \strike) + (r + 0.5 * vol * vol) * maturity) \vol \sqrt(maturity)
	d2 = d1 - vol * sqrt(maturity)
	return phi * spot * cdfNormal(0,1,phi * d1) - phi * strike * exp(-r * maturity) * cdfNormal(0,1,phi * d2)
}

def bs_vega(spot, strike, maturity, r, vol, q=0.0){
	/*
	 * spot：现货价,float:
	 * strike：行权价,float
	 * maturity：剩余天数,float、int
	 * r：无风险利率,float
	 * vol：波动率,float
	*/
	d1 = (log(spot \ strike) + (r + 0.5 * vol * vol ) * maturity) \ (vol * sqrt(maturity))
	return spot * sqrt(maturity) * pdfNorm(d1)
}

def implied_volatility_Newton(options_price, options_type, spot, strike, maturity, r){
	/*
	 * 牛顿法实现期权隐含波动率计算
	 * options_price,期权价格,float:
	 * spot：现货价,float:
	 * strike：行权价,float
	 * maturity：剩余天数,float、int
	 * r：无风险利率,float
	 * vol：波动率,float
	 * options_type:'期权类型 ,1或-1,代表C' or 'P'
	 *
	*/
	max_iterations= 100
	precision= 1.0e-6
	sigma = 0.5
	for (i in 1..max_iterations){ // i = 1
	    price = bs_price(options_type, spot, strike, maturity, r, sigma)
	    vega = bs_vega( spot, strike, maturity, r, sigma)
	    diff = price - options_price
	    if (abs(diff) < precision){
	        return sigma
	    }
	    sigma = sigma - diff \ vega
	}
	return 0.0
}

/**
 * ===================== black76+brentq方法（欧式期权),计算隐含波动率========================
 */
// Black 76公式
def black_76(F, K, T, r, sigma, option_type){
    d1 = (log(F \ K) + (0.5 * pow(sigma , 2) ) * T) \ (sigma * sqrt(T))
    d2 = d1 - sigma * sqrt(T)
    if (option_type == 1){
        return exp(-r * T) * (F * cdfNormal(0,1,d1) - K * cdfNormal(0,1,d2))
    }else if( option_type == -1){
        return exp(-r * T) * (K * cdfNormal(0,1,-d2) - F * cdfNormal(0,1,-d1))
    }else{
        return ("Option type must be 1 or -1.")
    }
}

def loss_function(sigma, F, K, T, r, option_type, market_price){
    return black_76(F, K, T, r, sigma, option_type) - market_price
}

/**
 * @ Function name:
 * @ Brief:
 * @ Param:
 * sigma : /none
 * F : 现货价,期货价格
 * K : 执行价
 * T : 剩余期限
 * r : 无风险利率
 * option_type : 期权类型 ,1或-1,代表'C' or 'P'
 * market_price : 期权价格
 * @ Return:
 * @ Sample usage:
 */
def implied_volatility_Black76Brentq(F, K, T, r, option_type, market_price){
	iv = double(NULL)
	try{
		iv = brentq(f=loss_function, a=1e-6, b=2, xtol=2e-12, rtol=1e-9, maxIter=100, funcDataParam=[F, K, T, r, option_type, market_price])[1]
	}catch(ex){
		writeLog("calculate error : " + ex)
	}
	return iv
}

/**
 * ============================= 计算greeks==============================
 */
/** 计算 delta**/
def calculateD1(etfTodayPrice, KPrice, r, dayRatio, HLMean){
        skRatio = etfTodayPrice / KPrice
        denominator = HLMean * sqrt(dayRatio)
        result = (log(skRatio) + (r + 0.5 * pow(HLMean, 2)) * dayRatio) / denominator
        return result
}

def cdfNormalMatrix(mean, stdev, X){
        originalShape = X.shape()
        X_vec = X.reshape()
        result = cdfNormal(mean, stdev, X_vec)
        return result.reshape(originalShape)
}
def calculateDelta(etfTodayPrice, KPrice, r, dayRatio, impvMatrix, CPMode){
        delta = iif(
                        impvMatrix <= 0,
                        0,
                        CPMode *cdfNormal(0, 1, CPMode * calculateD1(etfTodayPrice, KPrice, r, dayRatio, impvMatrix))
                )
        return delta
}

/**计算gamma**/
def normpdf(x){
        return exp(-pow(x, 2)/2.0)/sqrt(2*pi)
}



def calculateGamma(etfTodayPrice, KPrice, r, dayRatio, impvMatrix){
        gamma = iif(
                        impvMatrix <= 0,
                        0,
                        (normpdf(calculateD1(etfTodayPrice,  KPrice, r, dayRatio, impvMatrix)) \ (etfTodayPrice * impvMatrix * sqrt(dayRatio)))
                )
        return gamma
}

/**计算vega**/

def calculateVega(etfTodayPrice, KPrice, r, dayRatio, impvMatrix){
        vega = iif(
                        impvMatrix <= 0,
                        0,
                        etfTodayPrice * normpdf(calculateD1(etfTodayPrice, KPrice, r, dayRatio, impvMatrix)) * sqrt(dayRatio)
                )
        return vega\100.0
}

/**计算theta**/

def calculateTheta(etfTodayPrice, KPrice, r, dayRatio, impvMatrix, CPMode){
        annualDays = 365
        d1 = calculateD1(etfTodayPrice, KPrice, r, dayRatio, impvMatrix)
        d2 = d1 - impvMatrix * sqrt(dayRatio)
        theta = (-etfTodayPrice * normpdf(d1) * impvMatrix \ (2 * sqrt(dayRatio)) - CPMode * r * KPrice * exp(-r * dayRatio) *cdfNormal(0, 1, CPMode * d2))\annualDays
        result = iif(impvMatrix<= 0, 0, theta)
        return result
}

/**
 * ==================== 计算波动率和希腊字母 =========================
 */
def calIvAndGreek(futurePrice, kPrice, cpMode, optionPrice, expireDate, posReceiveTime, volumeMultiple, posiDirection, r = 0.0116){
    /*
    * expireDate：到期日
    * dayRatio：剩余到期时间
    * optionPrice：期权价
    * futurePrice：期货价
    * cpMode：0表示期货,1和-1表示看涨看跌期权
    * kPrice：执行价
    * expireDate:到期日
    * posReceiveTime：接收时间
    * r:无风险利率
    */
    if(cpMode == 0){
        // 希腊字母计算：期货的delta =+-1, 其他为0
        delta = 1.0 * volumeMultiple
        delta_手 = (delta \ volumeMultiple).round(4)

        if(posiDirection == '3'){
            delta = - delta
            delta_手 = - delta_手
        }
        // 注意不要把 0.0 修改为 0
        iv = 0.0
        gamma = 0.0
        gamma_手 = 0.0
        vega = 0.0
        theta = 0.0
    }else{
        dayRatio = ( timestamp(concatDateTime(expireDate, 15:00:00)) - timestamp(posReceiveTime)  ) \365.0\24\60\60\1000
        iv = round(implied_volatility_Black76Brentq(futurePrice, kPrice, dayRatio, r, cpMode, optionPrice), 4)
        delta  = round(calculateDelta(futurePrice, kPrice, r, dayRatio, iv, cpMode)* volumeMultiple, 4)
        delta_手 = delta\volumeMultiple
        gamma = round(calculateGamma(futurePrice, kPrice, r, dayRatio, iv)*volumeMultiple, 4)
        gamma_手 = gamma\volumeMultiple
        vega = round(calculateVega(futurePrice, kPrice, r, dayRatio, iv)*volumeMultiple, 4)
        theta = round(calculateTheta(futurePrice, kPrice, r, dayRatio, iv, cpMode)*volumeMultiple,4)

        if(posiDirection == '3'){
            delta = -delta
            delta_手= -delta_手
            gamma = -gamma
            gamma_手=-gamma_手
            vega = -vega
            theta = -theta
        }
    }

    return iv, delta, delta_手, gamma, gamma_手, vega, theta
}

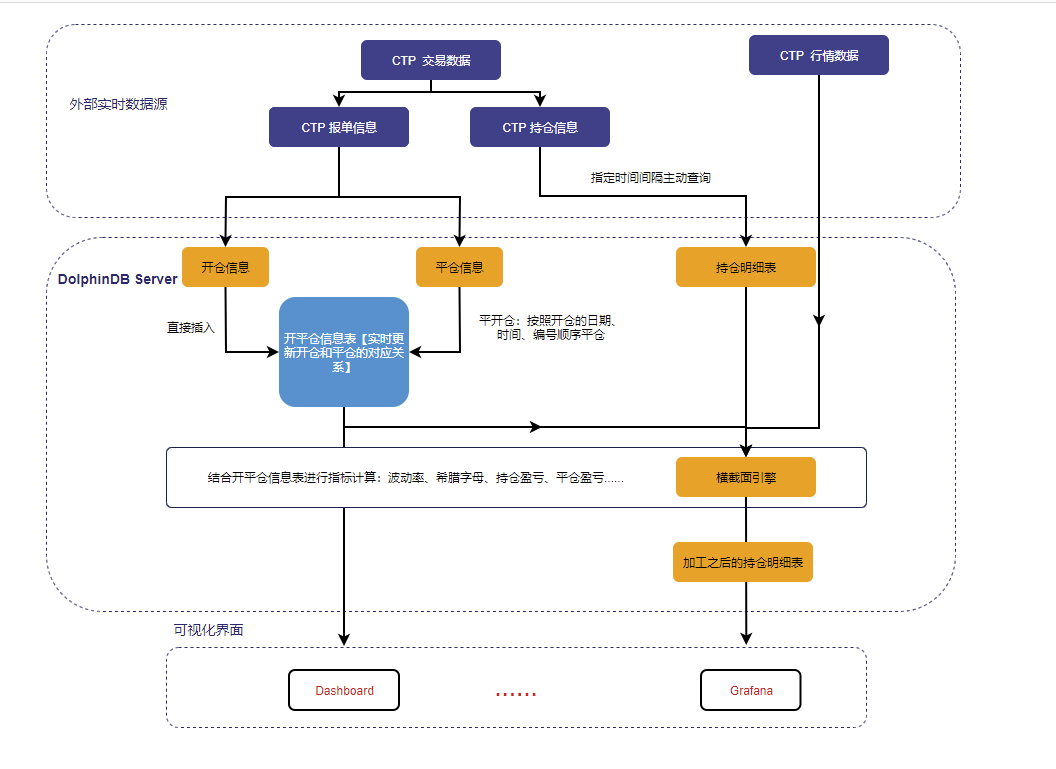

在对以上指标进行定义和封装之后，订阅 ctp 3s 推送一次的持仓明细，每当数据到来就推送给横截面引擎计算上述指标，从而实现对持仓明细表的二次开发，将最终的持仓明细数据存到键值表里面，来保证用户能够实时看见最新的持仓明细，辅助交易。

/**
 * ==================== 实时合成持仓信息表 =========================
 */
 def calGreeksByPos(instrumentID,posReceiveTime,posiDirection){
    /*
    * InstrumentID: 期权合约
    * posiDirection:持仓多空方向
    * volumeMultiple:合约乘数
    */
    instrumentID_ = instrumentID[0]
    posReceiveTime_ = posReceiveTime[0]
    posiDirection_ = posiDirection[0]
    instrumentID_underlying = instrumentID_.regexReplace("-?(C|P|c|p)-?[0-9]+$","");
    cpMode = iif(instrumentID_.regexReplace("^[a-zA-Z]{0,}","").regexReplace("^[0-9|-]{0,}","").regexReplace("[0-9|-]{0,}$","") in ["C","c"],1,iif(instrumentID_.regexReplace("^[a-zA-Z]{0,}","").regexReplace("^[0-9|-]{0,}","").regexReplace("[0-9|-]{0,}$","") in ["P",'p'], -1, 0)) //10ms

    // 数据 ETL

    // 从持仓信息表获取数据
    msg = getInfoFromInvestorPositionTable(instrumentID_, posReceiveTime_, posiDirection_)

    // 从ctp行情接口获取数据
    // 获取ExpireDate【到期日】,VolumeMultiple【合约乘数】,PreSettlementPrice【昨日结算价】,optionPrice【期权价】,futurePrice【期货价】,KPrice【执行价】
    expireDate,volumeMultiple,preSettlementPrice,optionPrice,futurePrice,kPrice = getInfoFromCtp(instrumentID_, posReceiveTime_, cpMode)

    // 指标计算

    // 计算波动率和希腊字母
    iv, delta, delta_手, gamma, gamma_手, vega, theta  = calIvAndGreek(futurePrice[0], kPrice[0], cpMode, optionPrice[0], expireDate[0], posReceiveTime_,volumeMultiple, posiDirection_)

    // 逐笔持仓盈亏
    floatingProfitByTrade = calFloatingProfitByTrade(posiDirection_, volumeMultiple, msg.Position[0], optionPrice[0], msg.OpenCost[0])
    // 逐日持仓盈亏
    floatingProfitByDate = calFloatingProfitByDate(instrumentID_, msg.YdPosition[0], msg.TodayPosition[0], posiDirection_, volumeMultiple, msg.Position[0], optionPrice[0], msg.OpenCost[0], preSettlementPrice)
    // 平仓盈亏
    closeingProfitByDateSum,closeingProfitByTradeSum = calCloseingProfitByTrade(instrumentID_, posiDirection_, volumeMultiple)

    return  msg.Commission[0].round(4),msg.CloseProfit[0],msg.PositionProfit[0],msg.PositionCost[0],msg.OpenCost[0],volumeMultiple,preSettlementPrice,optionPrice[0],msg.Position[0],floatingProfitByTrade,floatingProfitByDate,closeingProfitByDateSum,closeingProfitByTradeSum,msg.direction[0],iv[0], (delta_手*msg.Position[0])[0],(delta*msg.Position[0])[0],(gamma_手*msg.Position[0])[0],(gamma*msg.Position[0])[0],(vega*msg.Position[0])[0],(theta*msg.Position[0])[0]
}

// 横截面引擎
calGreekCrossAggregator=createCrossSectionalEngine(name="calGreeks1", metrics=<[calGreeksByPos(InstrumentID[0], ReceivedTime[0],PosiDirection[0]) as `Commission`CloseProfit`PositionProfit`PositionCost`OpenCost`VolumeMultiple`PreSettlementPrice`SpotPrice`Position`FloatingProfitByTrade`FloatingProfitByDate`CloseProfitByDate`CloseingProfitByTrade`Direction`IV`Delta_手`Delta`Gamma_手`Gamma`Vega`Theta]>, dummyTable=InvestorPositionTable, outputTable=GreekTable, keyColumn=`PosiDirection`InstrumentID, triggeringPattern=`interval, useSystemTime=false,contextByColumn=`PosiDirection`InstrumentID, timeColumn=`ReceivedTime,triggeringInterval=2000)

// 订阅
subscribeTable(tableName="InvestorPositionTable", actionName="calGreeks", offset=-1, handler=append!{calGreekCrossAggregator}, msgAsTable=true)

表结构：

利用 DolphinDB 的 Dashboard 或者通过 Grafana 对结果表进行可视化展示。例如，通过 DolphinDB 自带的 Dashboard 进行的展示，在配置持仓明细表为数据源后，设置每秒自动刷新面板，用户即可实时、直观地看到观测到持仓明细表的变化。Dashboard 的相关教程如下：数据面板。
